Cup

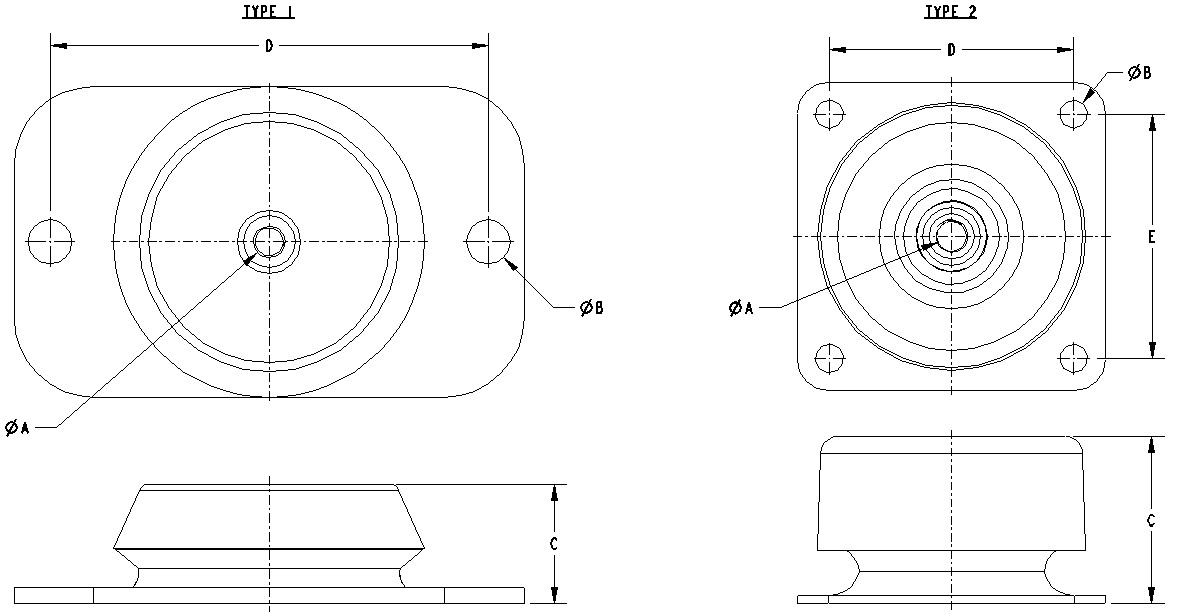

Diagram of a Cup Rubber Plate Mount
Series Part # Load Stiffness Type (for image) B (mm) C (mm) D (mm) E (mm) Thread Type
4500 4500-X4 2447.00 803.00 1 10.90 30.00 110.00 M10 X 1.5
4500 4500-X7 4893.00 1605.00 1 10.90 30.00 110.00 M10 X 1.5
4500 4500-X7-R 4893.00 1605.00 1 10.90 30.00 110.00 M12 X 1.75
4505 4505-X1 1779.00 500.00 1 10.00 34.00 122.90 M10 X 1.5
4505 4505-X2 2669.00 750.00 1 10.00 34.00 122.90 M10 X 1.5
4510 4510-X1 8474.00 667.00 2 14.50 84.00 148.00 148.00 M20 X 2.5
4510 4510-X3 12166.00 958.00 2 14.50 84.00 148.00 148.00 M20 X 2.5
4510 4510-X5 17059.00 1343.00 2 14.50 84.00 148.00 148.00 M20 X 2.5
4510 4510-X7 24888.00 1960.00 2 14.50 84.00 148.00 148.00 M20 X 2.5
4515 4515-X4 8500.00 669.00 2 13.00 78.00 114.00 114.00 M16 X 2
4515 4515-X6 13166.00 1037.00 2 13.00 78.00 114.00 114.00 M16 X 2
4515 4515-X8 15480.00 1219.00 2 13.00 78.00 114.00 114.00 M16 X 2
Series Part # Load (lb) Stiffness (lb/in) Type B (in) C (in) D (in) E (in) Thread Type
4500 4500-X4 550 4583 1 0.43 1.18 4.33 M10 X 1.5
4500 4500-X7 1100 9167 1 0.43 1.18 4.33 M10 X 1.5
4500 4500-X7-R 1100 9167 1 0.43 1.18 4.33 M12 X 1.75
4505 4505-X1 400 2857 1 0.39 1.34 4.84 M10 X 1.5
4505 4505-X2 600 4286 1 0.39 1.34 4.84 M10 X 1.5
4510 4510-X1 1905 3810 2 0.57 3.31 5.80 5.80 M20 X 2.5
4510 4510-X3 2735 5470 2 0.57 3.31 5.75 5.75 M20 X 2.5
4510 4510-X5 3835 7670 2 0.57 3.31 5.75 5.75 M20 X 2.5
4510 4510-X7 5595 11190 2 0.57 3.31 5.75 5.75 M20 X 2.5
4515 4515-X4 1910 3820 2 0.51 3.07 4.49 4.49 M16 X 2
4515 4515-X6 2960 5920 2 0.51 3.07 4.49 4.49 M16 X 2
4515 4515-X8 3480 6960 2 0.51 3.07 4.49 4.49 M16 X 2
