Chain

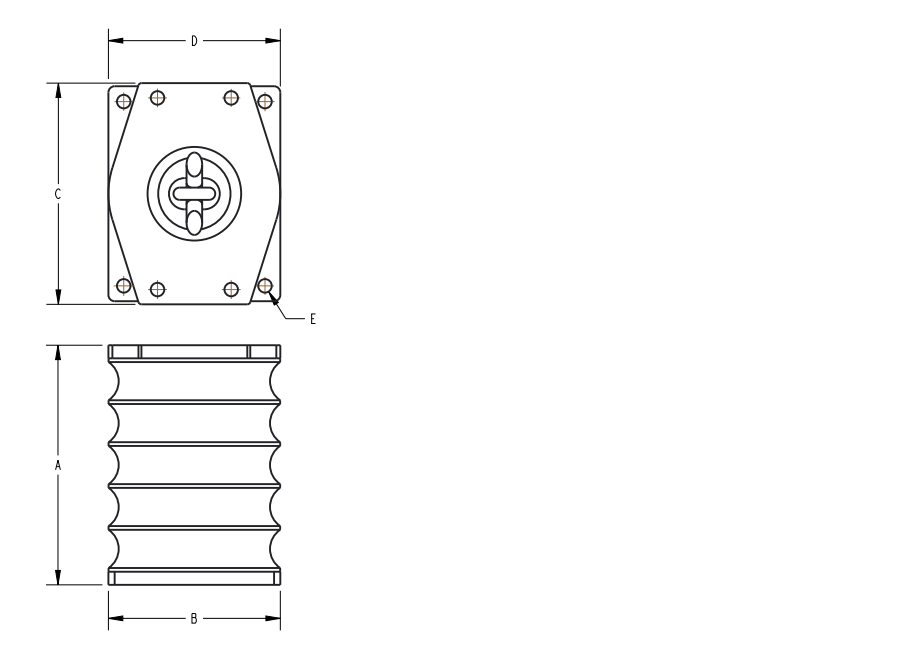

Chain Diagram
Series Part # A (mm) B (mm) C (mm) D (mm) E (mm)
4480 4480 195.10 139.70 180.10 140.00 11.00
4490 4490 195.10 139.70 180.10 140.00 11.00
Series Part # A (in) B (in) C (in) D (in) E (in)
4480 4480 7.68 5.50 7.09 5.51 0.43
4490 4490 7.68 5.50 7.09 5.51 0.43
